Range hood - Chimney

22T7HK Chimney single-layer glass touch T-shaped range hood

The following table, you can slide around to see more information.

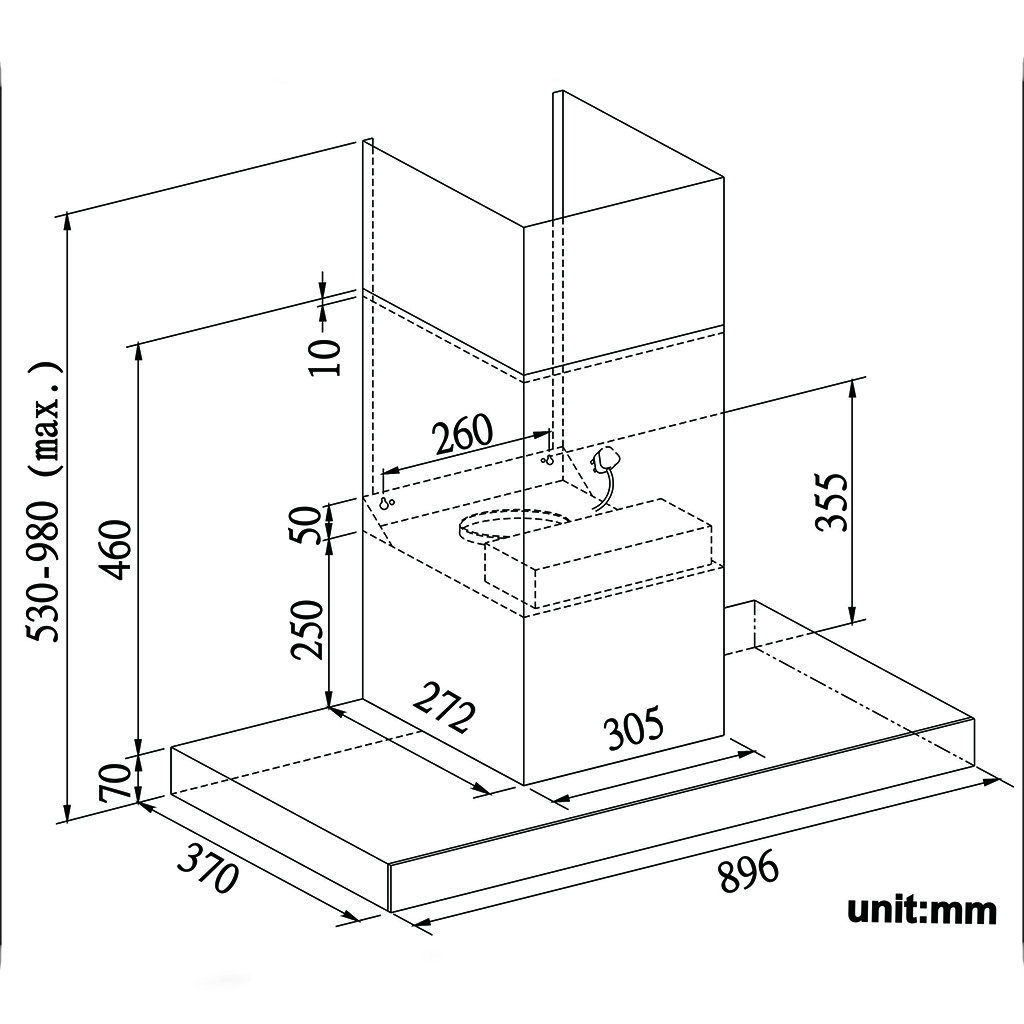

Product dimensions (length*width*depth)   net weight

package dimensions   (length*width*depth)   gross weight

volume of exhaust air      (m³/min)

Product features

896*70*370 mm
16 kg
1050*525*575 mm
20 kg

18.2 m³/min = 1092 m³/hr = 643 ft³/min (110V / 60Hz)



17 m³/min = 1020 m³/hr = 602 ft³/min (220V / 50Hz)



*Exhaust air volume data is tested according to CNS-3805 national standard.

1、The product meets the latest national standard set forth by the Bureau of Standards, Metrology and Inspection, Ministry of Economic Affairs.



2、Dual-use design, which allows the product to be used as a European range hood or a built-in range hood.



3、Three-speed, bipolar strong suction motor, which increases exhaust air volume and remove smoke faster, thus eliminating grease and smoke at turbo speed.



4、Reinforced black glass touch switch, which brings an elegant, trendy and technologically advanced style to the range hood.



5、White LED down lighting with high brightness and low power consumption.



6、Three-piece filter design, which can be removed for cleaning, thus extending the service life of the range hood.



7、Strong suction function with turbo button, which eliminates grease and smoke in a flash.



8、Delayed shutdown function, which eliminates residual grease and smoke in the kitchen (180 second delayed-on operation).



9、Disposable oil collection cup, which does not harm your soft hands and promotes easy handling.



10、Parts from Taiwan, manufactured in Taiwan and made entirely in Taiwan.
