Range hood - Removable

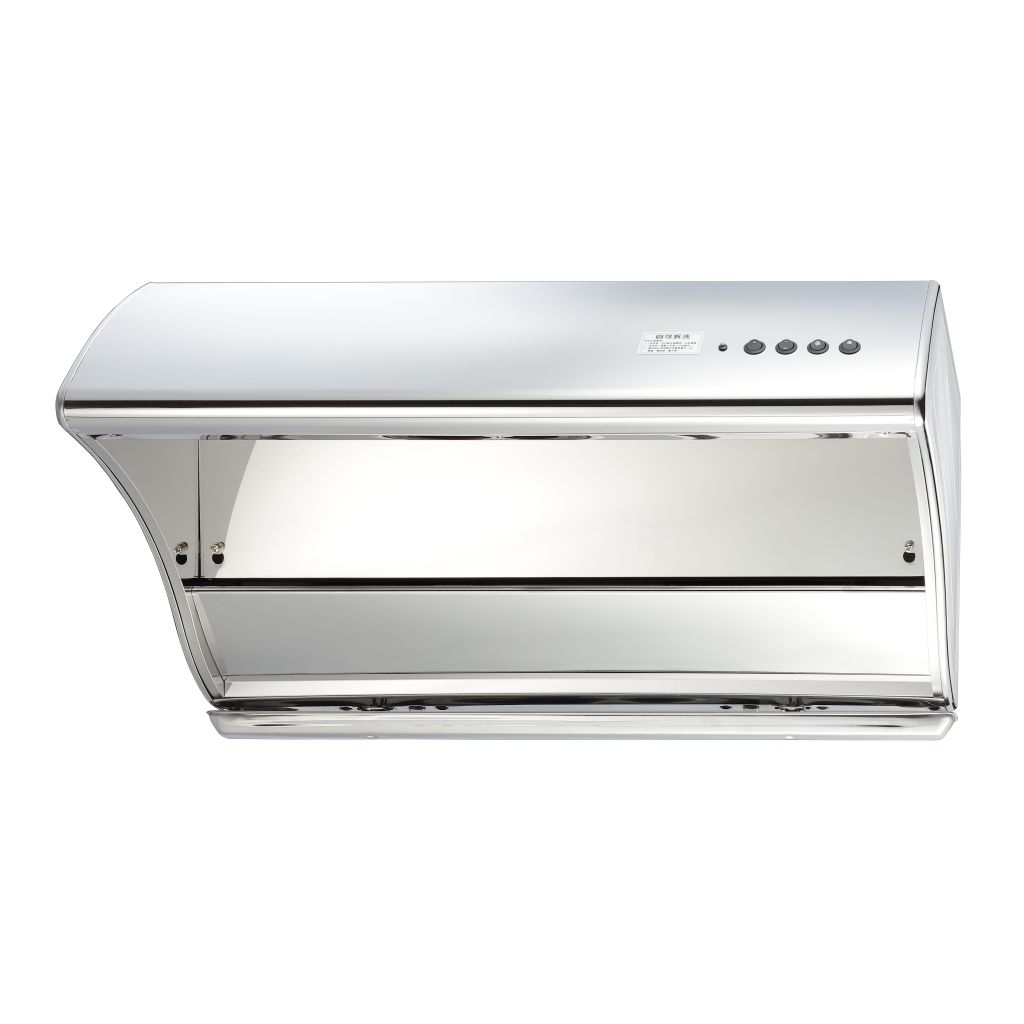

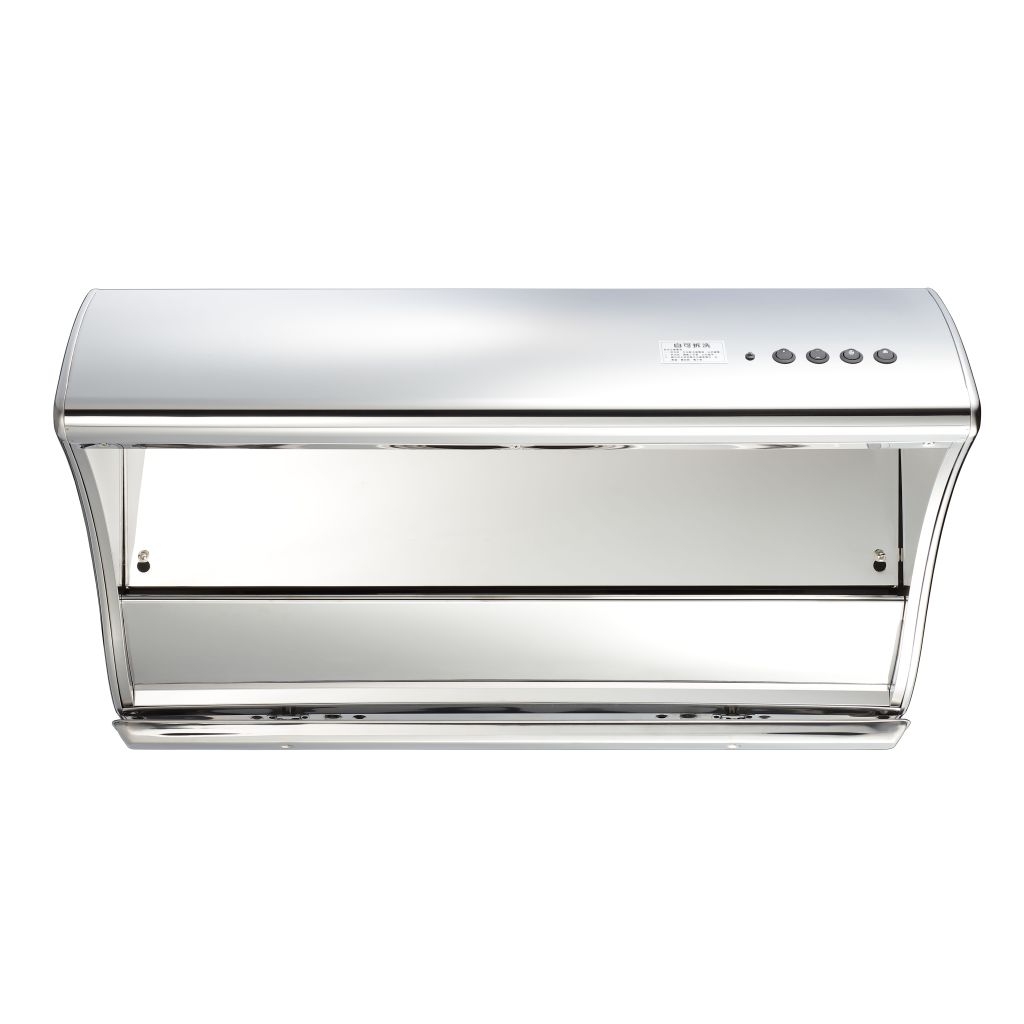

N8107S / N9107S Removable range hood for easy cleaning

The following table, you can slide around to see more information.

Product dimensions (length*width*depth)   net weight

package dimensions   (length*width*depth)   gross weight

volume of exhaust air   (m³/min)

Product features

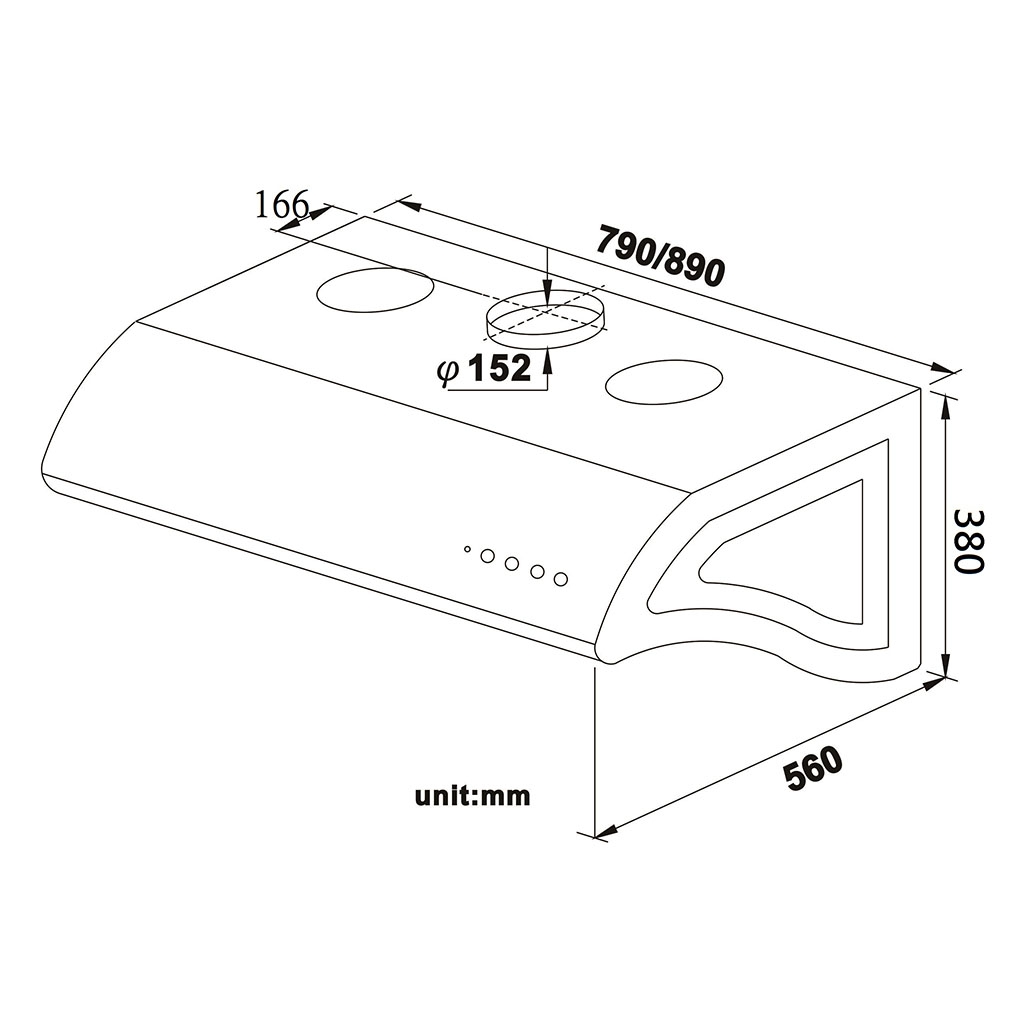

790/890*380*560 mm
16/17 kg
860/960*450*630 mm
18/19 kg

17 m³/min = 1020 m³/hr = 637 ft³/min (110V / 60Hz)



15.5 m³/min = 930 m³/hr = 580 ft³/min (220V / 50Hz)



*Exhaust air volume data is tested according to CNS-3805 national standard.

1、The product meets the latest national standard CNS3765 set forth by the Bureau of Standards, Metrology and Inspection, Ministry of Economic Affairs.



2、Vertical exhaust chamber with clockwise/counter-clockwise motor and clockwise/counter-clockwise blades, which removes smoke smoothly without return air.



3、Deepened panel design, which increases smoke collection and prevents grease and smoke from spillovers.



4、23W energy-saving white lamps with high brightness and low power consumption.



5、Reinforced glass material in light films, which tolerates high temperature and does not experience deformation.



6、DIY removable design for easy cleaning, which does not require any tool to remove fan parts for cleaning, thus saving cleaning costs and prolongs the service life of the range hood.



7、One-piece molded stainless steel oil collection tank, which tolerates high temperature and does not experience deformation, bringing a beautiful and natural style.



8、Disposable oil collection cup, which does not harm your soft hands and promotes easy handling.



9、 Parts from Taiwan, manufactured in Taiwan and made entirely in Taiwan.
