Range hood - Ultra-thin

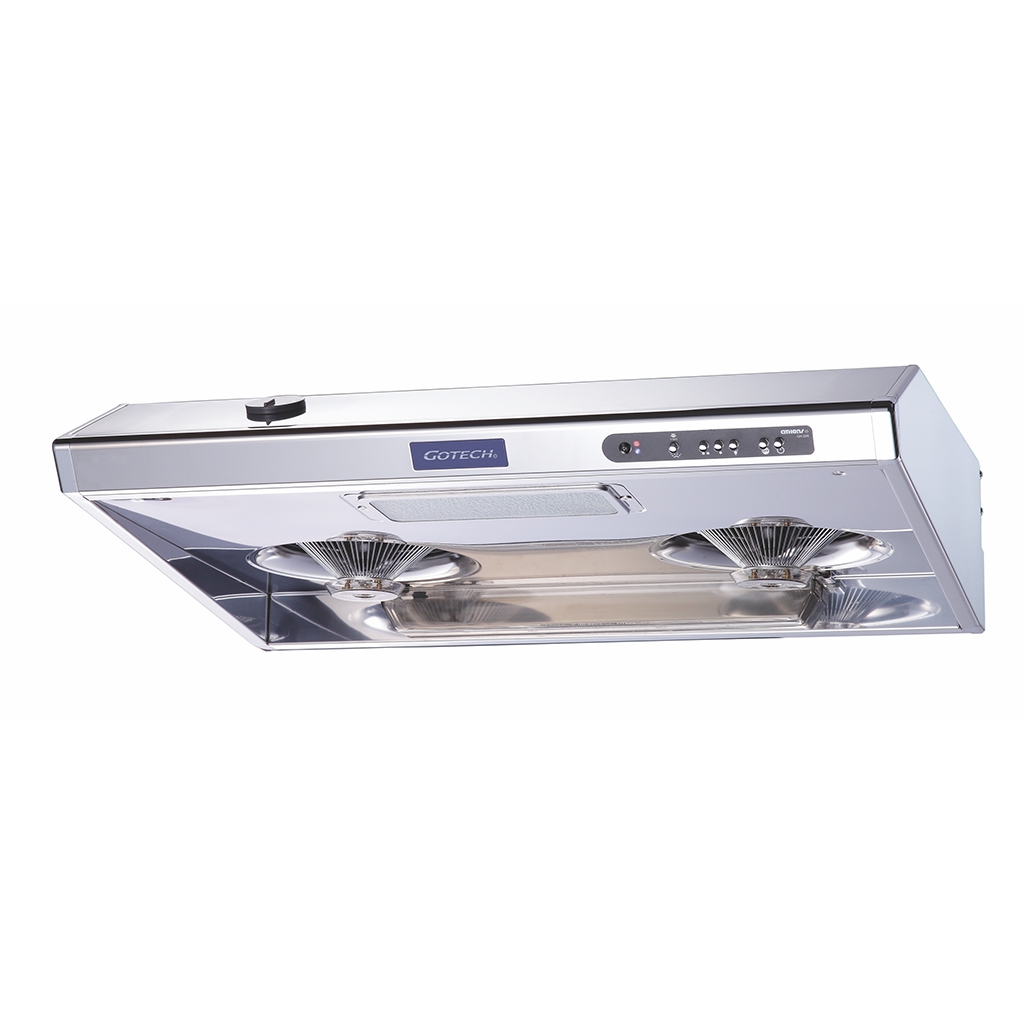

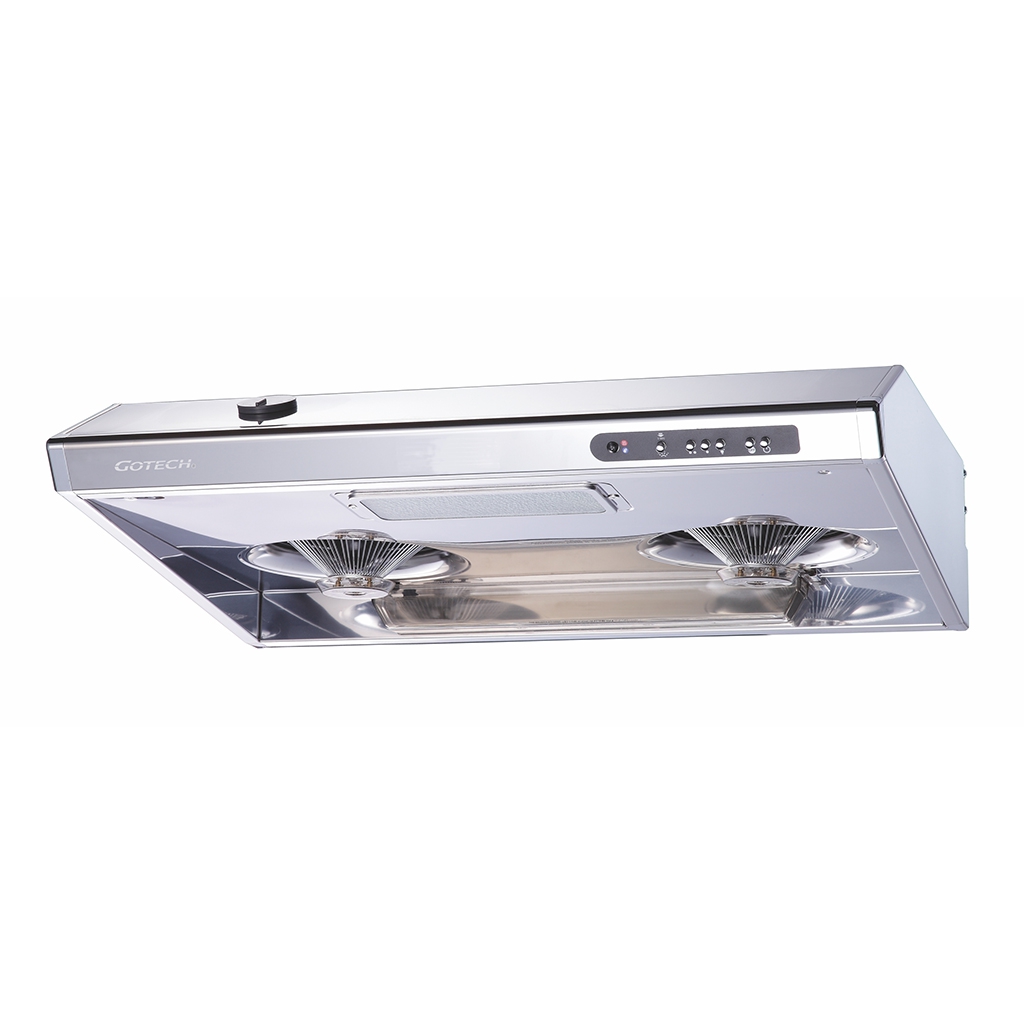

7163SW Ultra-thin electro-thermal water wash range hood

The following table, you can slide around to see more information.

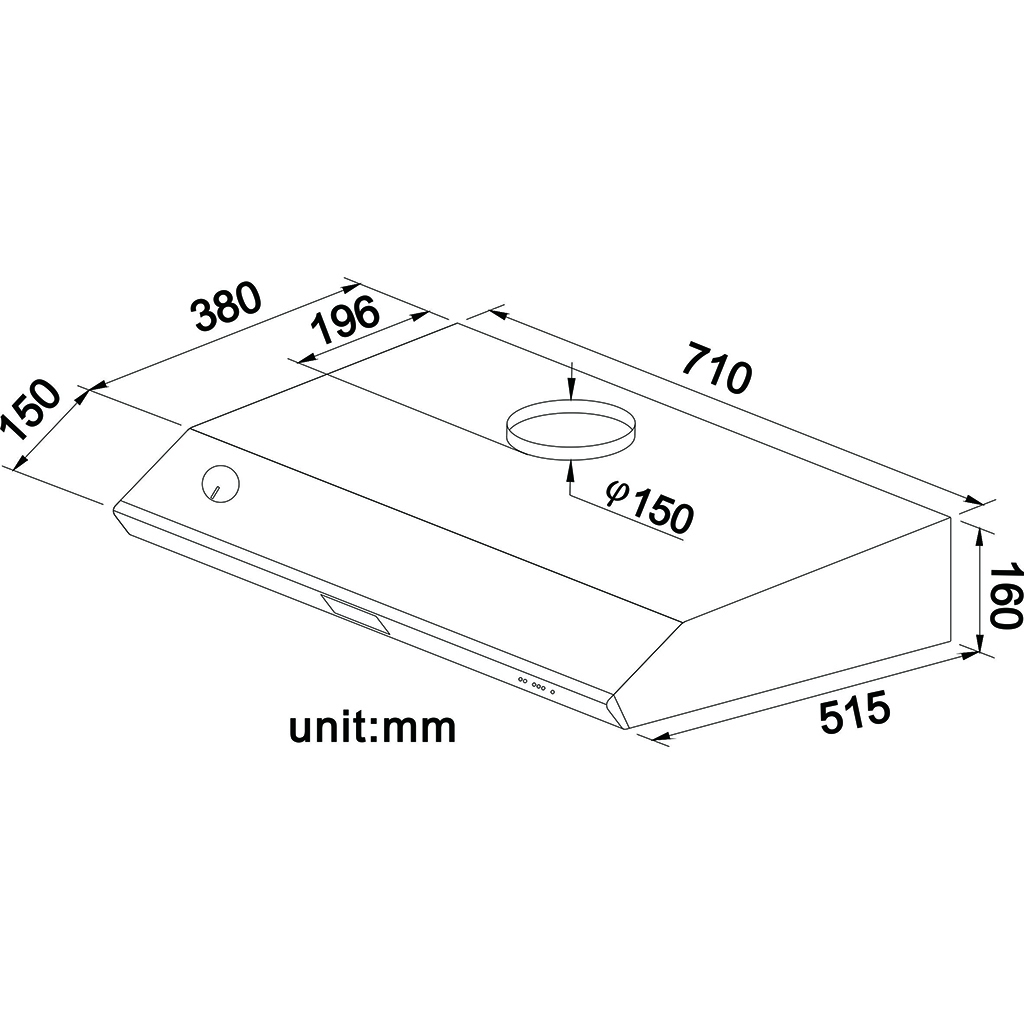

Product dimensions (length*width*depth)   net weight

package dimensions   (length*width*depth)   gross weight

volume of exhaust air     (m³/min)

Product features

710*160*515 mm
12 kg
770*220*600 mm
14 kg



11.91 m³/min = 715 m³/hr = 446 ft³/min(220V / 50Hz)



*Exhaust air volume data is tested according to CNS-3805 national standard.

1、Double cleaning effect with electro-thermal degreasing and water column cleaning, which does not require detergent, making it easy to clean and eco-friendly.



2、Ultra-thin shape, which does not occupy space, bringing a flow line style to the range hood.



3、Energy-saving white LED lamps with high brightness and low power consumption.



4、Glass lamp film design, which tolerates high temperature and does not deform.



5、Uses lighting to show the logo design, bringing a beautiful and natural style to the range hood.



6、Fully automatic cleaning process: Electro-thermal degreasing for 15 minutes Water column cleaning for 20 seconds High speed air-drying for 30 seconds Shut down



7、Water shortage light indicator design.



8、Parts from Taiwan, manufactured in Taiwan and made entirely in Taiwan.
