Range hood - Ultra-thin

5070ST / 5080ST / 5090ST Traditional range hood

The following table, you can slide around to see more information.

Product dimensions (length*width*depth)   net weight

package dimensions   (length*width*depth)   gross weight

volume of exhaust air    (m³/min)

Product features

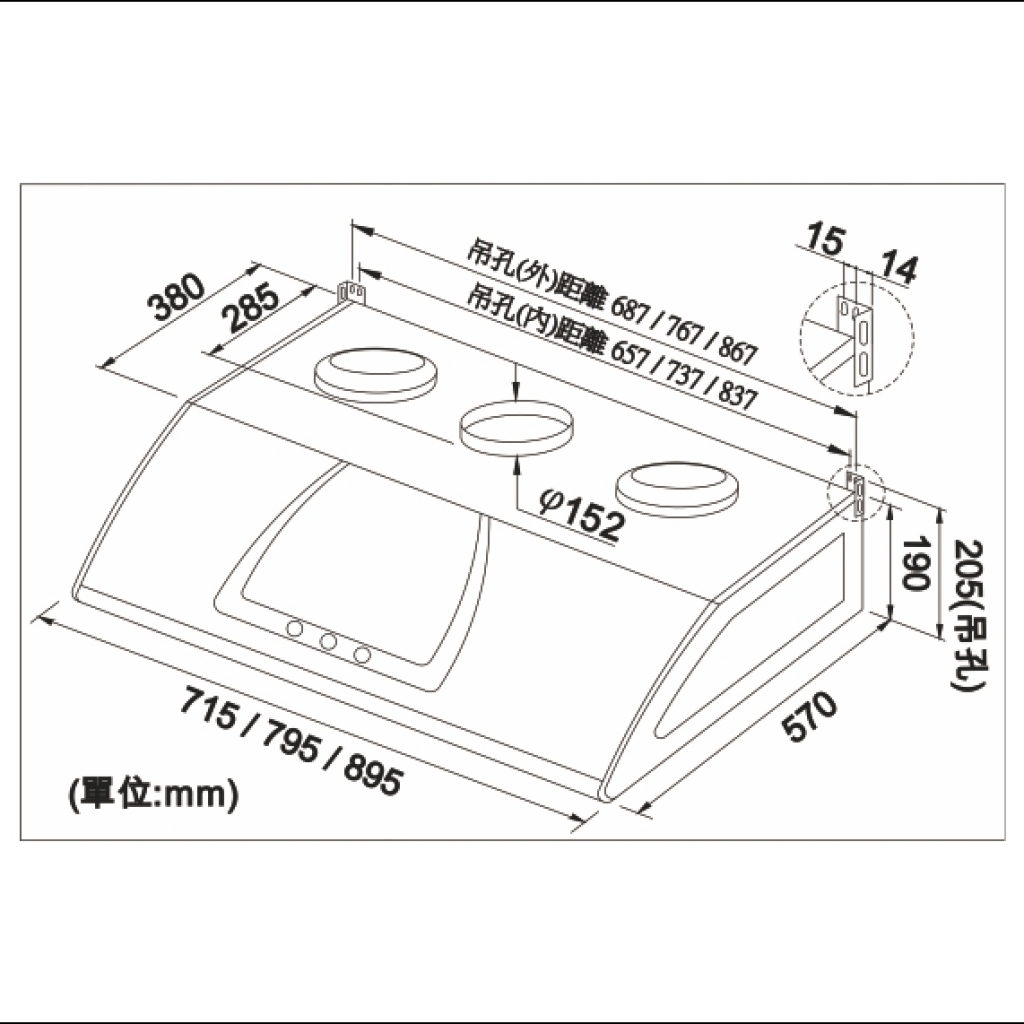

715/795/895*190*560 mm
11/12/13 kg
780/880/960*315*630 mm
13/14/15 kg

16.84 m³/min = 1010 m³/hr = 631 ft³/min (110V / 60Hz)



 14.5 m³/min = 870 m³/hr = 543 ft³/min (220V / 50Hz)



*Exhaust air volume data is tested according to CNS-3805 national standard.



1、The product meets the latest national standard CNS3765 set forth by the Bureau of Standards, Metrology and Inspection, Ministry of Economic Affairs.



2、Three-dimensional reinforcement design, which brings a beautiful and natural style to the range hood.



3、One-piece molded stainless steel panel, which facilitates easy cleaning and handling.



4、Disposable oil collection cup, which does not harm your soft hands and promotes easy handling.



5、Parts from Taiwan, manufactured in Taiwan and made entirely in Taiwan.
