Range hood - Slanting

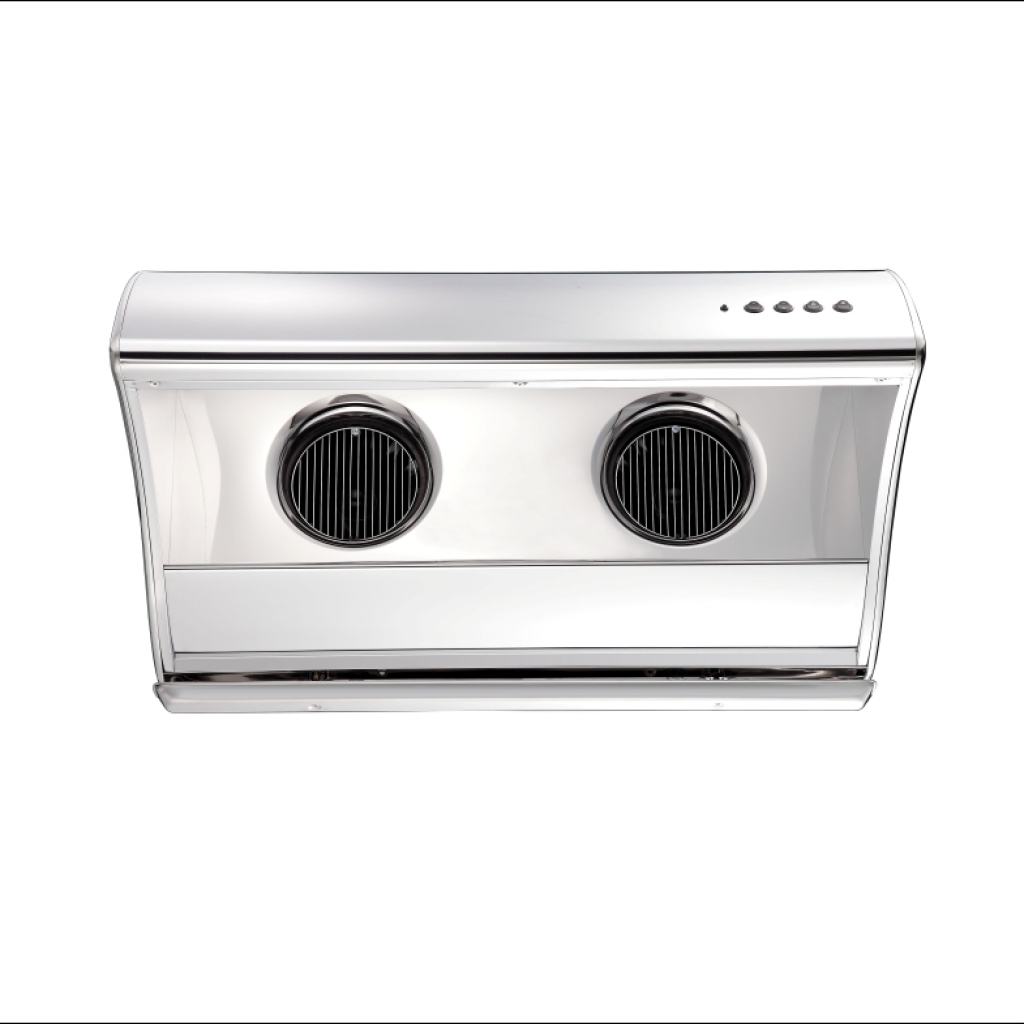

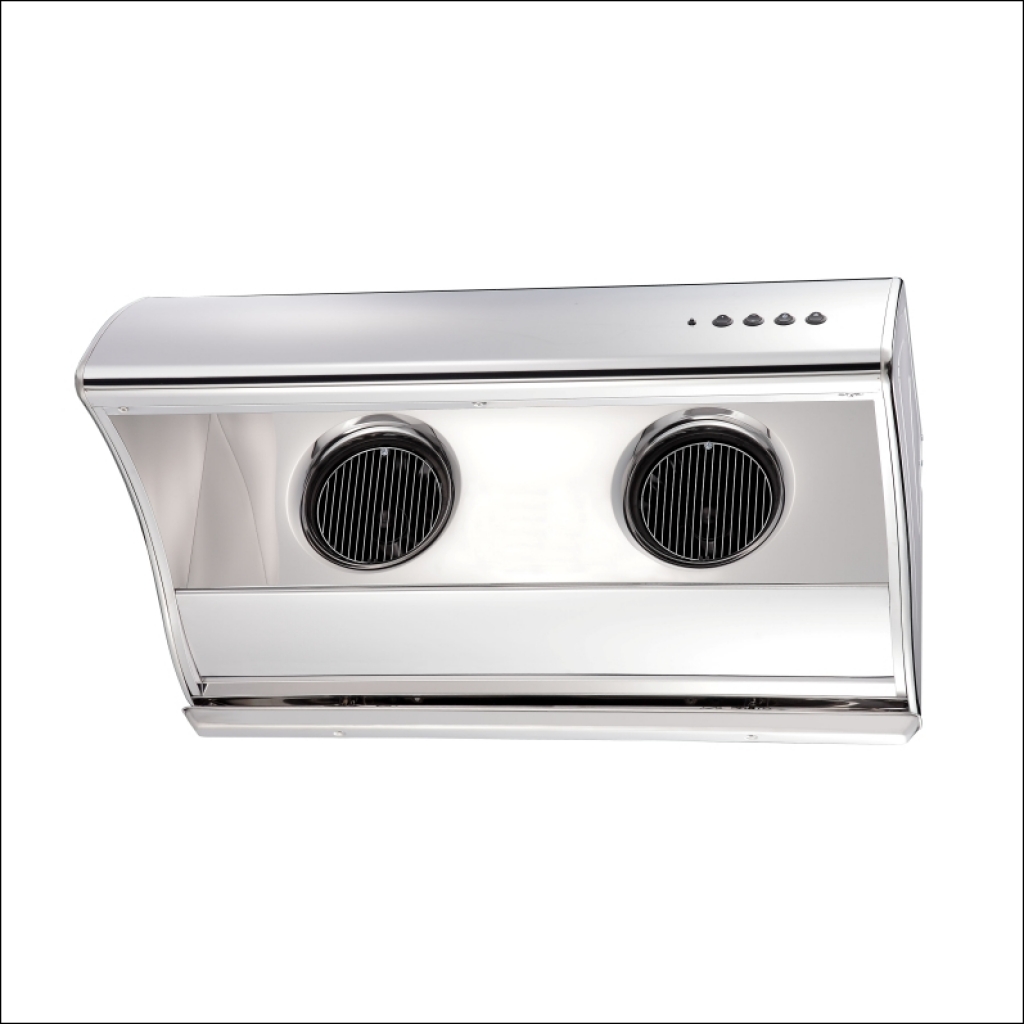

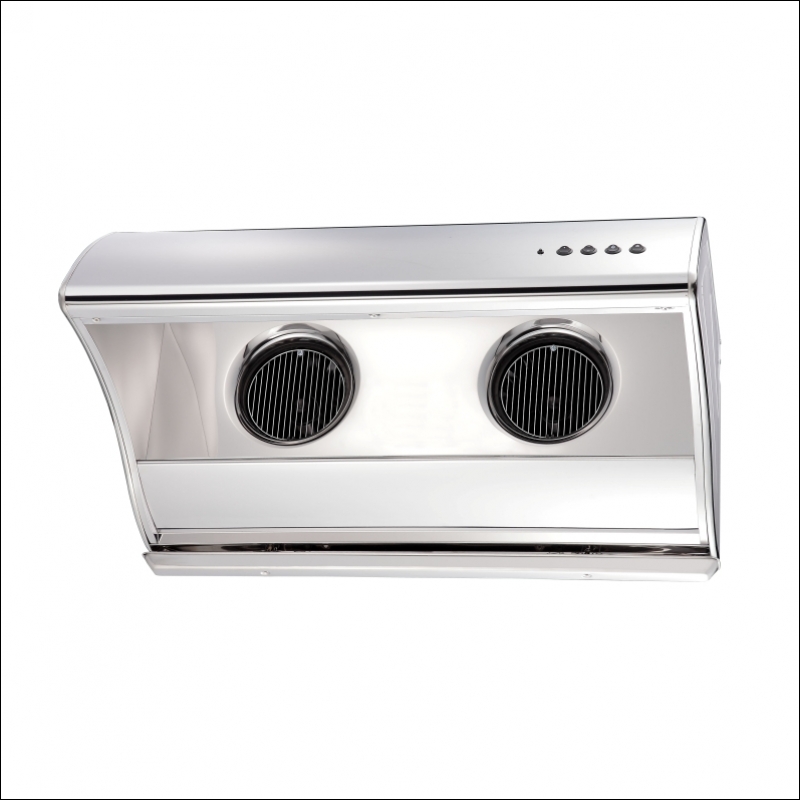

N8104S / N9104S Vertical range hood

The following table, you can slide around to see more information.

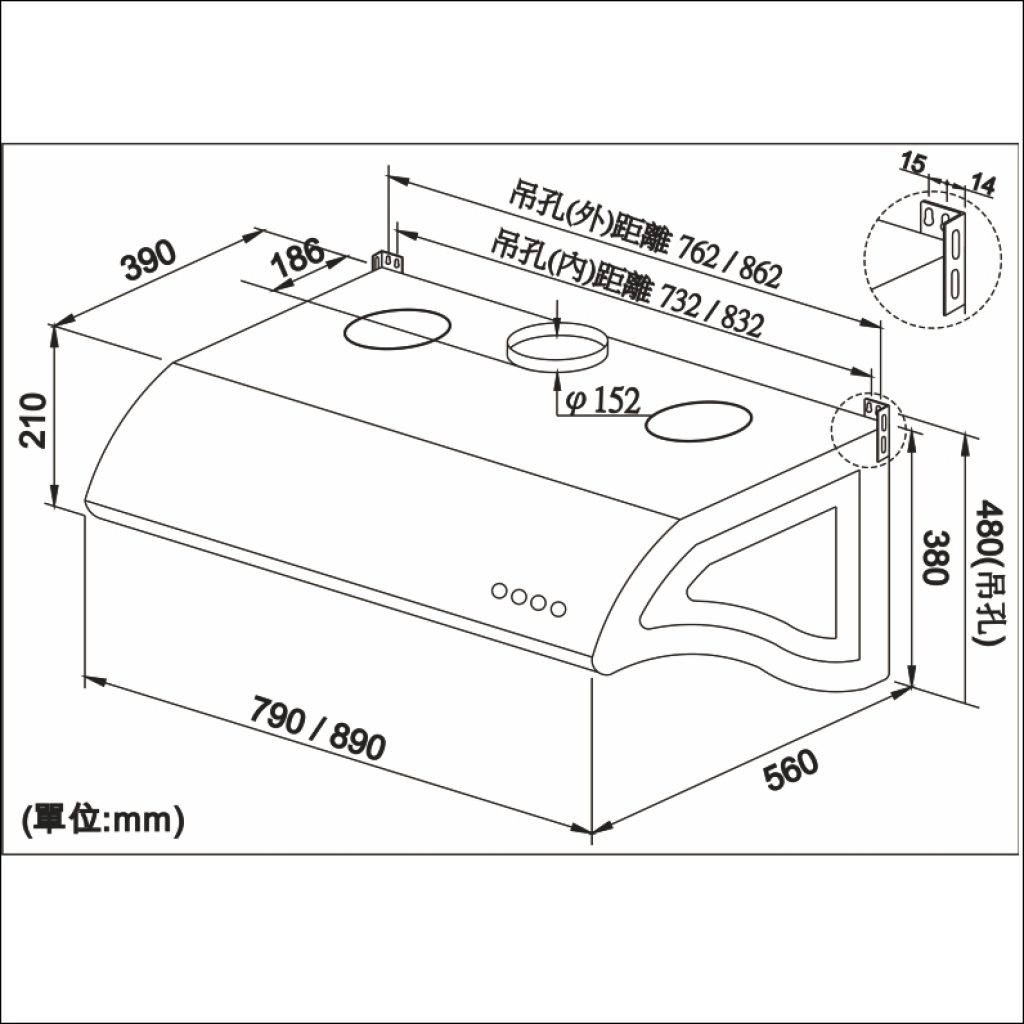

Product dimensions (length*width*depth)   net weight

package dimensions   (length*width*depth)   gross weight

volume of exhaust air   (m³/min)

Product features

790/890*380*560 mm
16/17 kg
860/960*450*630 mm
18/19 kg

17.0 m³/min = 1020 m³/hr = 600 ft³/min(110V/60Hz)



15.0 m³/min = 900 m³/hr = 530 ft³/min(220V/50Hz)



1、The product meets the latest national standard CNS 60335、CNS 13783、CNS 15663 set forth by the Bureau of Standards, Metrology and Inspection, Ministry of Economic Affairs.



2、Direct injection type clockwise/counter-clockwise exhaust chamber, which removes smoke smoothly without return air.



3、10W white LED lamps with high brightness and low power consumption.



4、Glass lamp film design, which tolerates high temperature and does not deform.



5、Deepened panel design, which increases smoke collection and prevents grease and smoke from spillovers.



6、Clockwise/counter-clockwise motor combined with clockwise/counter-clockwise turbine blades, which accelerate smoke removal.



7、Parts from Taiwan, manufactured in Taiwan and made entirely in Taiwan.
