Range hood - Built-in

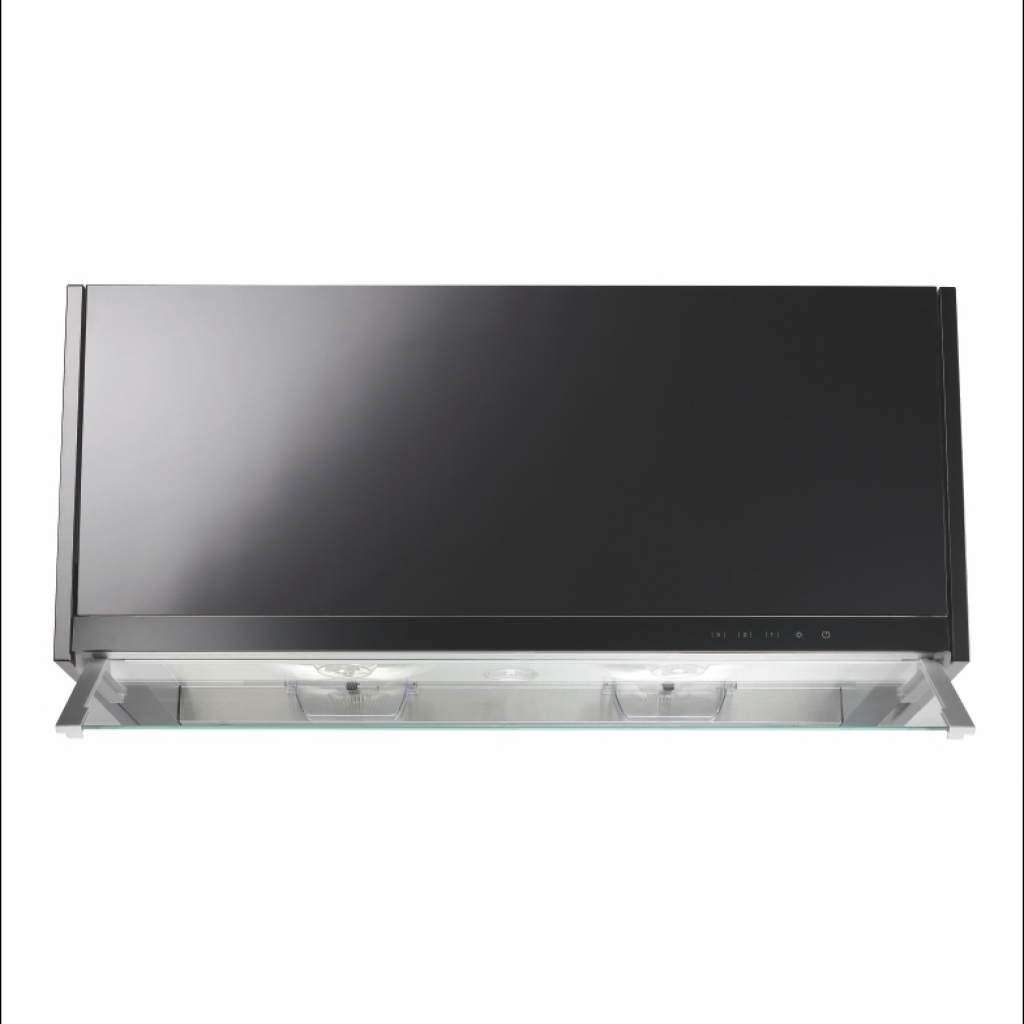

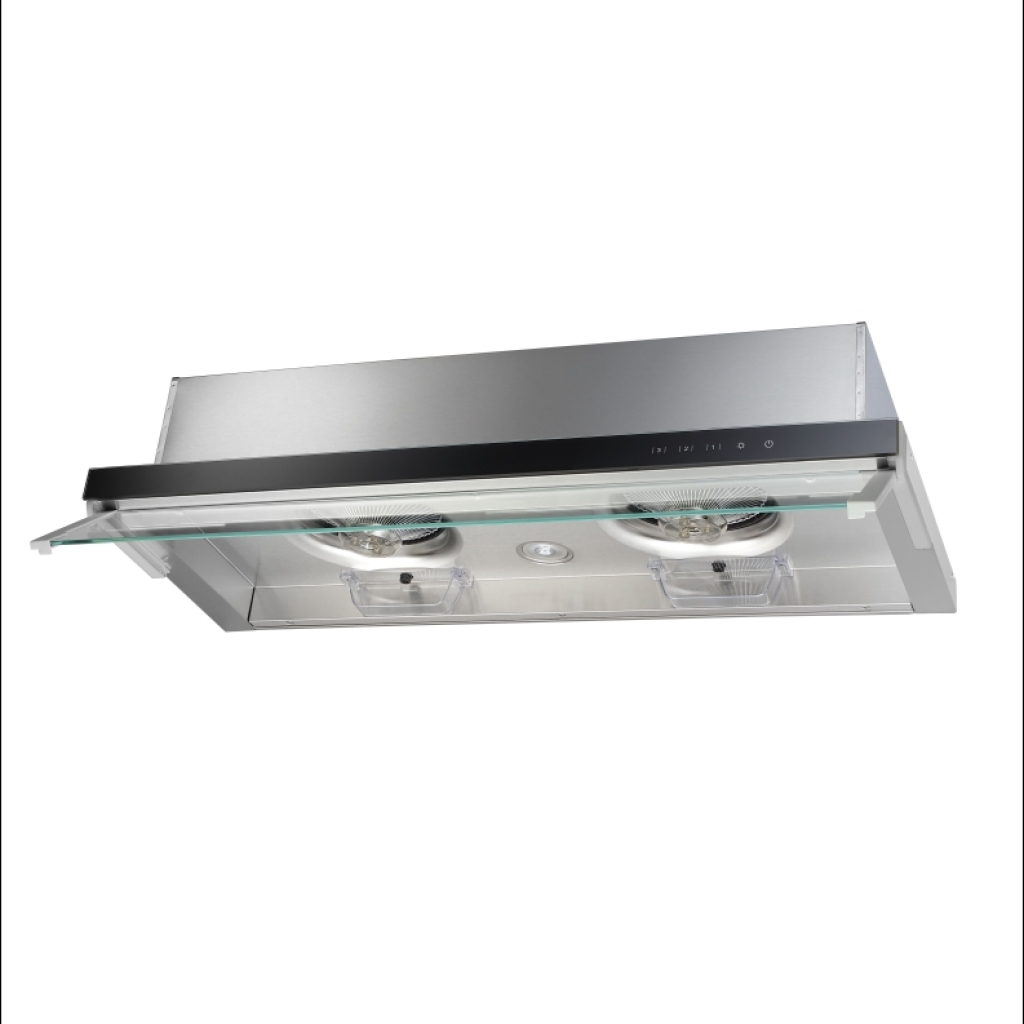

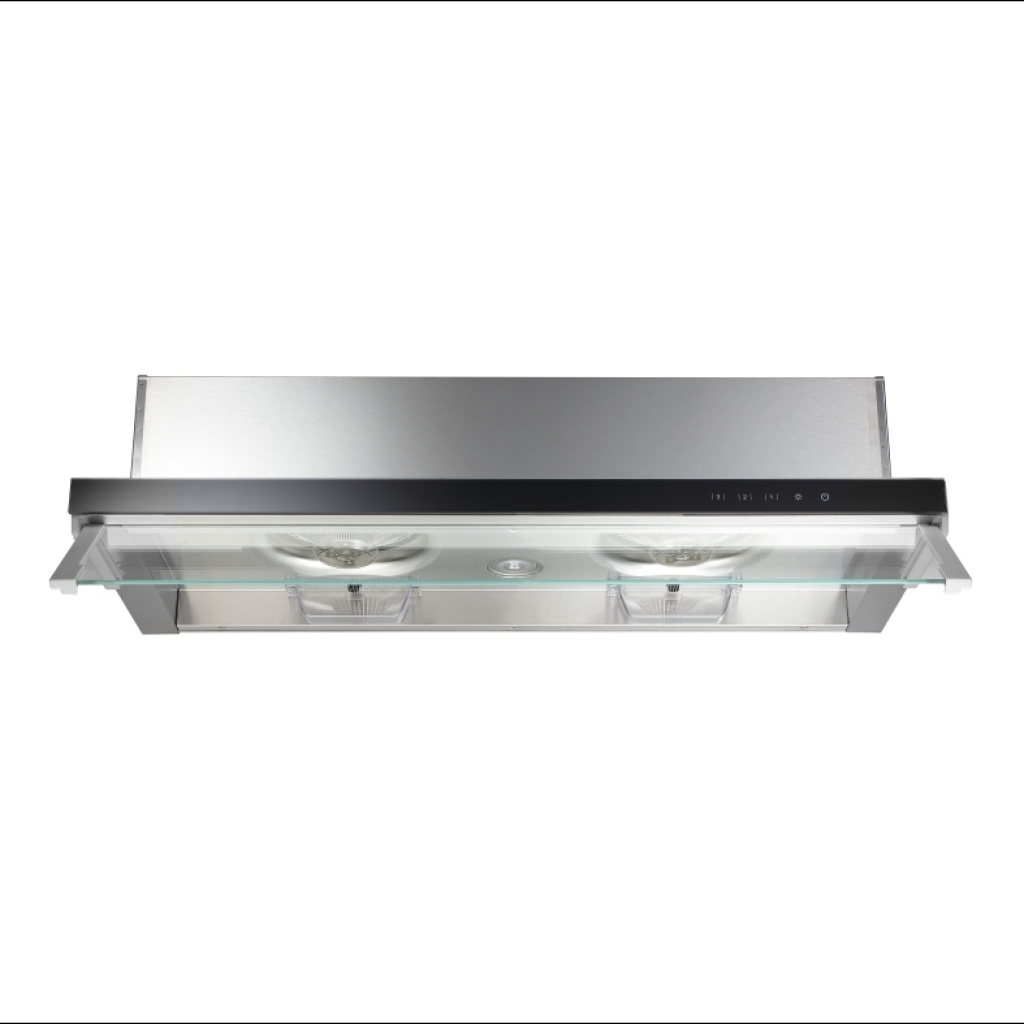

N1086SSG / N1096SSG Gless touch turbo built-in ventilator

The following table, you can slide around to see more information.

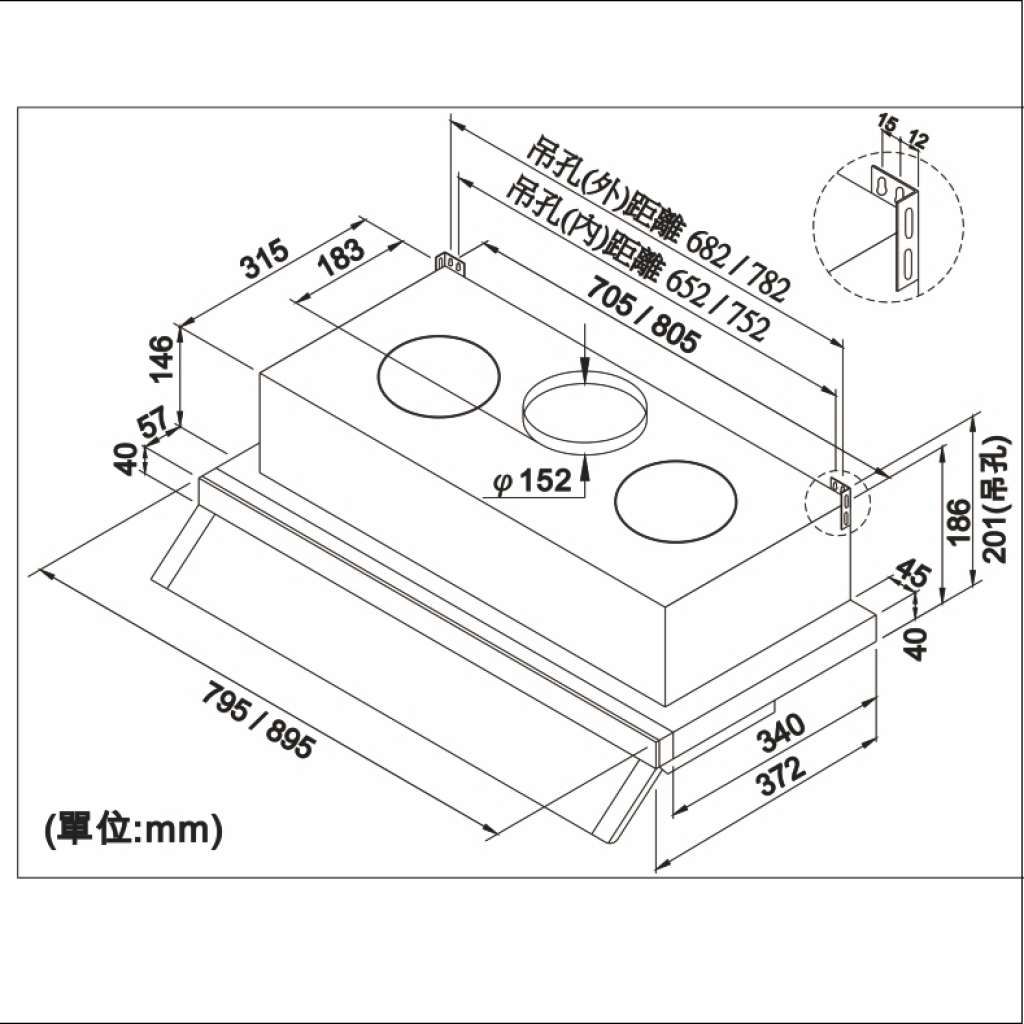

Product dimensions (length*width*depth)   net weight

package dimensions   (length*width*depth)   gross weight

volume of exhaust air     (m³/min)

Product features

795/895*186*372 mm
14.0 / 15.0 kg
870/970*255*520 mm
1/ 16 kg

15.0 m³/min = 900 m³/hr = 530 ft³/min

(110V / 60Hz)



13.0 m³/min = 780 m³/hr = 460 ft³/min

(220V / 50Hz)



*Exhaust air volume data is tested according to CNS-3805 national standard.

1、The product meets the latest national standard CNS 60335、CNS 13783、CNS 15663 set forth by the Bureau of Standards, Metrology and Inspection, Ministry of Economic Affairs.



2、Aluminum wind blade resistant to high temperature without deformation, high speed running without vibration.



3、3 speed high-speed motor, turbo function instantly kills oil smoke.



4、Gless touch panel, bringing a beautiful and natural style to the range hood. The size of the front gless touch panel is 4 cm.



5、Push-pull glass smoke screen panel, which effectively isolates smoke and grease from spillovers.



6、Side plate 4 cm, can directly replace the built-in ventilator without modifying the cabinet side board.



7、Hairline finish stainless steel material, which covers the entire range hood, bringing a trendy and avant-garde style to the range hood.



8、3W White LED downlight with high brightness and low power consumption.



9、Disposable oil collection cup, which does not harm your soft hands and promotes easy handling.



10、Parts from Taiwan, manufactured in Taiwan and made entirely in Taiwan.
